Natural Language Processing in Risk and Finance
Developing an Insurance Claims Clustering Application
About this Course¶
You will find all course material and setup instructions in the following repository.
What you will learn¶
- Fundamental Concepts: Overview of NLP and its relationship with Artificial Intelligence (AI) and Deep Learning (DL).
- Applied NLP: Discover how to effectively process insurance claims using advanced NLP techniques.
- Text Data Processing: Master the techniques to transform raw text data into a machine-readable format, including:
- Tokenization: Breaking text into individual words or phrases.
- Vocabulary Creation: Building a set of unique words from the text.
- Vectorization: Converting text into numerical representations for analysis.
- Linguistic representation: Explore how recent advancements in NLP enable the capture of various levels of linguistic complexity, enhancing understanding and analysis.

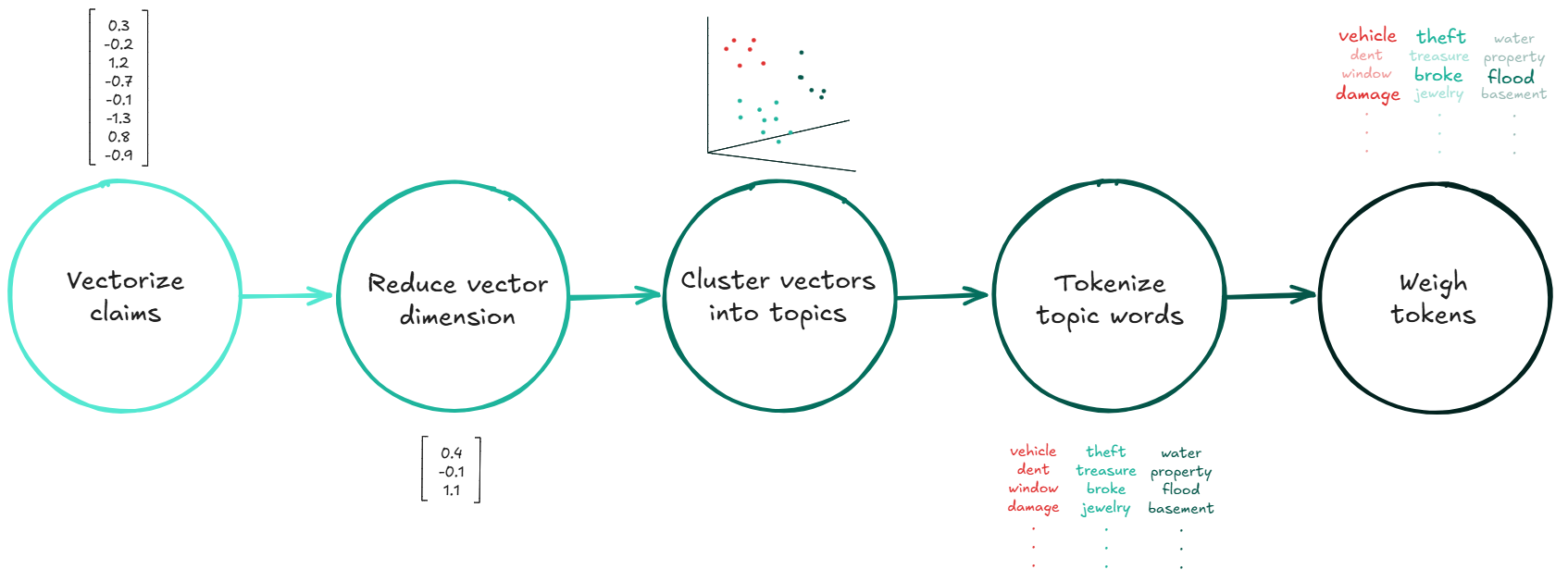

- Topic Modeling: Learn to cluster text data into meaningful groups, facilitating insights and organization of information.
- Foundations of Generative AI: This course lays the groundwork for understanding Generative AI applications that produce human-like language.
What is Natural Language Processing?¶

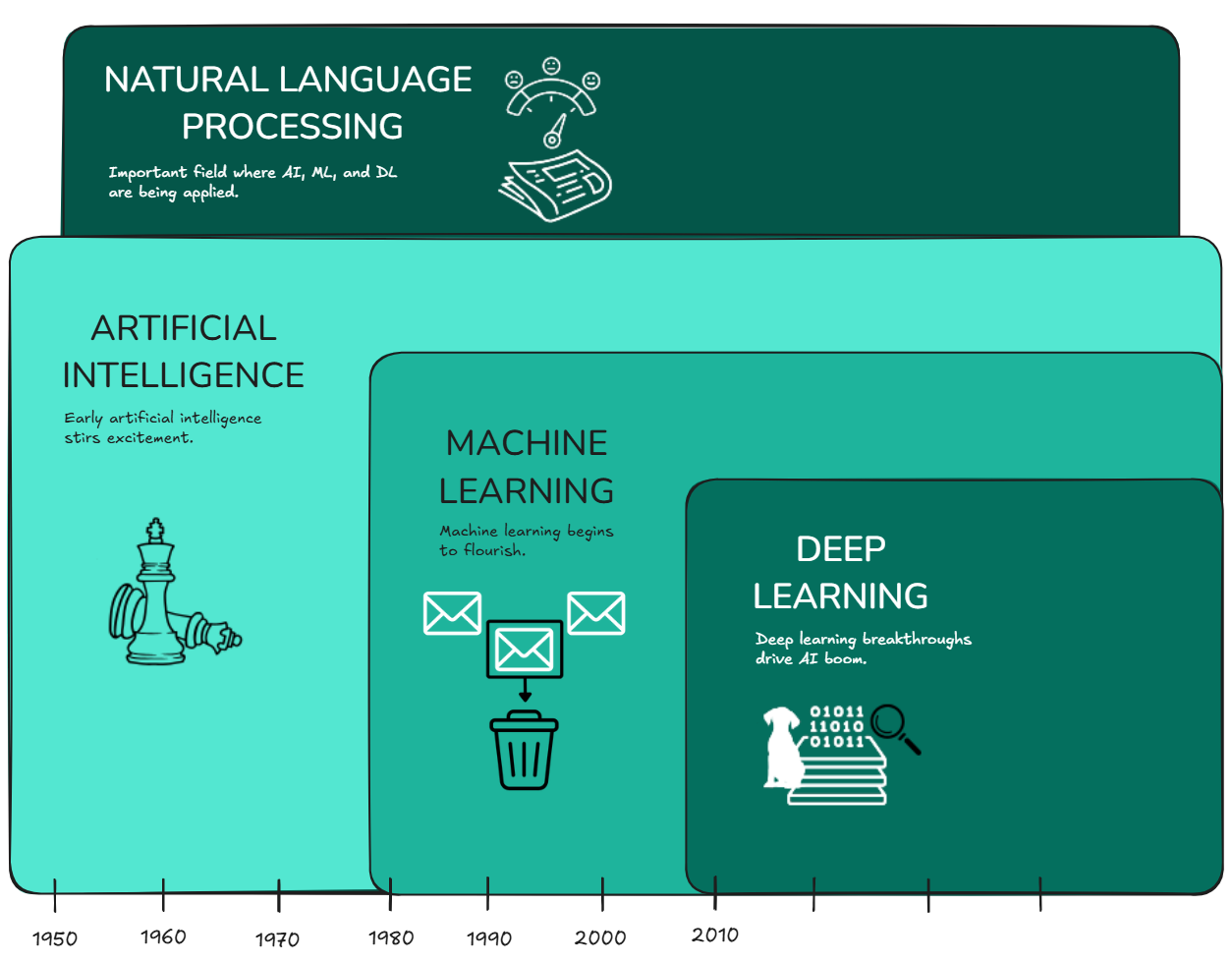

Natural Language Processing (NLP) is a specialized branch of AI where methods from the field of Machine Learning and Deep Learning are applied to bridge the gap between human communication and machine understanding.
Image source: Author
Artificial Intelligence (AI): The Broad Umbrella
AI is the overarching field that encompasses all technologies and systems designed to simulate human intelligence. This includes tasks like reasoning, problem-solving, learning, and decision-making.
Machine Learning (ML): The Foundation
Machine learning is a subset of AI that enables systems to learn from data and improve their performance over time without being explicitly programmed. ML algorithms identify patterns in structured data and use these patterns to make predictions or decisions.
Deep Learning (DL): The Engine Behind State-of-the-Art NLP Techniques
Deep learning is a specialized branch of ML that uses artificial neural networks inspired by the human brain. These networks are particularly effective at processing large amounts of unstructured data, such as images, text, and audio.
Natural Language Processing (NLP): A Key Application Area
Natural language processing is a specialized branch of AI that focuses on enabling machines to understand, interpret, and generate human language. It bridges the gap between human communication and machine understanding.
NLP draws on concepts from linguistics, computer science, and AI to process and analyze natural language data. It is often powered by ML and DL techniques, which help machines learn from vast amounts of text data and improve their language understanding capabilities.
Application of Natural Language Processing in Risk Management¶
NLP in risk management enhances the ability to analyze unstructured data, such as news articles, social media, and customer feedback, to identify potential risks, emerging trends, and fraudulent activities. By leveraging techniques like sentiment analysis, text clustering, and text summarization, NLP can automate the extraction of relevant information, improve accuracy, and enable faster response times.
A real-world use case: Automated Claims Processing¶
In the following, we will work on a real-world use case that insurance companies typically face. It is the process of reviewing insurance claims submitted by policyholders to the insurance company.
Instead of dealing with claims manually, NLP algorithms are used to extract relevant information from unstructured data sources: claim forms, emails, and documents. Once done, they automatically categorise and prioritise claims based on their severity and complexity, ensuring that urgent or complex claims receive prompt attention while routine claims are processed efficiently.

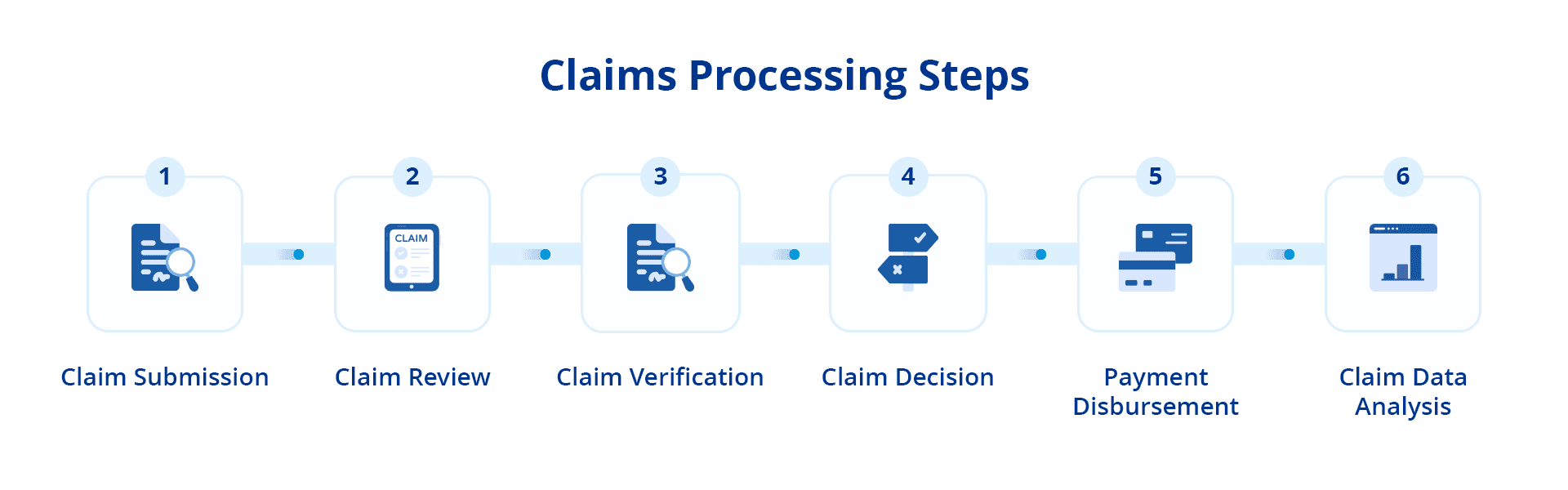

Claims processing is a multi-step process which bears great potential for automation using NLP techniques.
Image source: Astera
Developing an Automated Claims Processing Model¶
Data inspection¶
import pandas as pd
Read data.
df_claims = pd.read_csv('data/claims.csv')
df_claims.head(3)
| claim_description | |
|---|---|
| 0 | THE IV WAS MAKING A LEFT TURN ON A GREEN ARROW... |
| 1 | CLAIMANT ALLEGES SHE SUFFERED INJURIES IN AN E... |
| 2 | IV PASSENGER SUSTAINED INJURIES, OV AND IV COL... |
Remove null values.
df_claims.claim_description.isnull().sum()
227
df_claims = df_claims[df_claims.claim_description.notnull()]
df_claims.shape[0]
191363
We have data comprising 191,363 claim descriptions.
Lowercase all.
df_claims['claim_description'] = df_claims.claim_description.apply(lambda text: text.lower())
df_claims.sample(3).style
| claim_description | |
|---|---|
| 41128 | ov merged into rear tandems of iv |
| 127460 | vehicle damage caused by a property access gate |
| 70113 | customer hit power transformer near chevron station causing power outage for approximately 20 hours, pge required us to hire electrician to come check power panel, found panel d not to have power. |
Looking at the distribution of the number of words in the claims descriptions, we can see on average the claims have around 30 words with some outliers that are relatively long with more than 300 words.
df_claims.claim_description.apply(lambda x: len(x.split(' '))).plot.hist(bins=50, color='#1eb49c', log=True)
<Axes: ylabel='Frequency'>
Tokenization¶
Tokenization in NLP is the process of dividing text into smaller units called tokens, which can be words, phrases, or symbols, and it is essential for enabling machines to analyze and understand unstructured text data effectively.
In the following section, we will utilize the re module to implement our custom tokenization logic. Regular expressions (regex) are a powerful
tool for string manipulation and can effectively extract tokens from text.
Regular expressions (regex) are sequences of characters that define search patterns, allowing users to efficiently find, match, or manipulate strings of text based on specific criteria.
import re
tokenize_pattern = re.compile(r"(?u)\b\w\w+\b")
- \w: word character like letters (both lowercase and uppercase), digits or underscores. \w\w+ means that at least 2 word characters need to follow one another.
- \b: word boundary position where a word character is not followed or preceded by another word character.
claim = 'Broken rear window while parked. Window splinter caused damage to other vehicle.'
tokens = tokenize_pattern.findall(claim.lower())
tokens
['broken', 'rear', 'window', 'while', 'parked', 'window', 'splinter', 'caused', 'damage', 'to', 'other', 'vehicle']
Stopwords¶
Stopwords are common words in a language, such as "the," "is," and "and," that carry little semantic value and are often removed in NLP tasks to enhance the efficiency and accuracy of text analysis by focusing on more meaningful content.
There are pre-defined lists of stopwords for different languages. We use the English stopword list from the nltk library.
import nltk
from nltk.corpus import stopwords
nltk.download('stopwords', quiet=True)
Using list comprehension we can now create our stopword list with lowercased words only.
stopwords_en = [stopword.lower() for stopword in stopwords.words('english')]
len(stopwords_en)
198
stopwords_en[:10]
['a', 'about', 'above', 'after', 'again', 'against', 'ain', 'all', 'am', 'an']
We now tokenize the claims descriptions and remove the stopwords. Moreover, we count how often each word occurs in the corpus of claims descriptions.
In NLP, a corpus is a large and structured collection of authentic text data used for training, testing, and evaluating NLP models.
from tqdm import tqdm
from collections import Counter
word_counter = Counter()
# Process each claim and update the word counter
for claim_desc in tqdm(df_claims.claim_description.values):
# Split the claim into words using the regex pattern
words = tokenize_pattern.findall(claim_desc)
# Filter out empty strings and stopwords and update the counter
word_counter.update(word for word in words if word and word not in stopwords_en)
# Convert the Counter to a dictionary
word_frequencies = dict(word_counter)
100%|██████████| 191363/191363 [00:07<00:00, 24702.15it/s]
What are the most common words found in the corpus.
word_counter.most_common(10)
[('iv', 76320),
('vehicle', 55795),
('damage', 47147),
('ov', 46545),
('driver', 46366),
('injuries', 38956),
('claimant', 31255),
('rear', 28871),
('front', 27642),
('struck', 26354)]
Please note that "iv" refers to "insured vehicle" and "ov" stands for "other vehicle."
This provides a clear overview of the text data domain: Insurance!
Vocabulary¶
We will now establish the vocabulary that is crucial for defining the scope of language that the claims processing model can effectively understand and process.
A vocabulary is a set of unique words in a corpus.
vocabulary = sorted(set(word_frequencies.keys()))
len(vocabulary)
93208
Our vocabulary consists of 93,208 distinct words, which is considered quite extensive.
The Oxford Dictionary, for example, contains approximately 273,000 headwords, with 171,476 currently in use. It features over 600,000 total word forms, while some estimates suggest that the English vocabulary may encompass up to 1 million words, including specialized and foreign terms.
Let's take a moment to explore which words have made their way into our vocabulary.
vocabulary[:10]
['00', '000', '0000', '00000', '0000000115192chef', '0000000115196', '000001', '000001593', '000007', '000019']
Our tokenizer definition also extracts number sequences as tokens, since \w matches word characters, including letters and digits. However,
we typically do not want these number sequences in our vocabulary. Therefore, we remove any tokens that are not part of the official
English dictionary. To achieve this, we utilize nltk, which provides a comprehensive list of English words.
from nltk.corpus import words
nltk.download('words', quiet=True)
dictionary = set(words.words())
dictionary = {word.lower() for word in dictionary}
len(dictionary)
234377
The nltk dictionary comprises 234,377 words which is close to the number of headwords found in the Oxford Dictionary.
We will now refine our vocabulary to include only those words that are part of the dictionary.
vocabulary = [word for word in vocabulary if word in dictionary]
len(vocabulary)
16283
We end up with a vocabulary of 16,283 distinct words.
vocabulary[-10:]
['zip', 'zipper', 'zonar', 'zone', 'zoned', 'zoning', 'zoo', 'zoom', 'zoster', 'zucchini']
Text vectorization¶
Text vectorization is the process of converting textual data into numerical vectors that machine learning algorithms can understand.

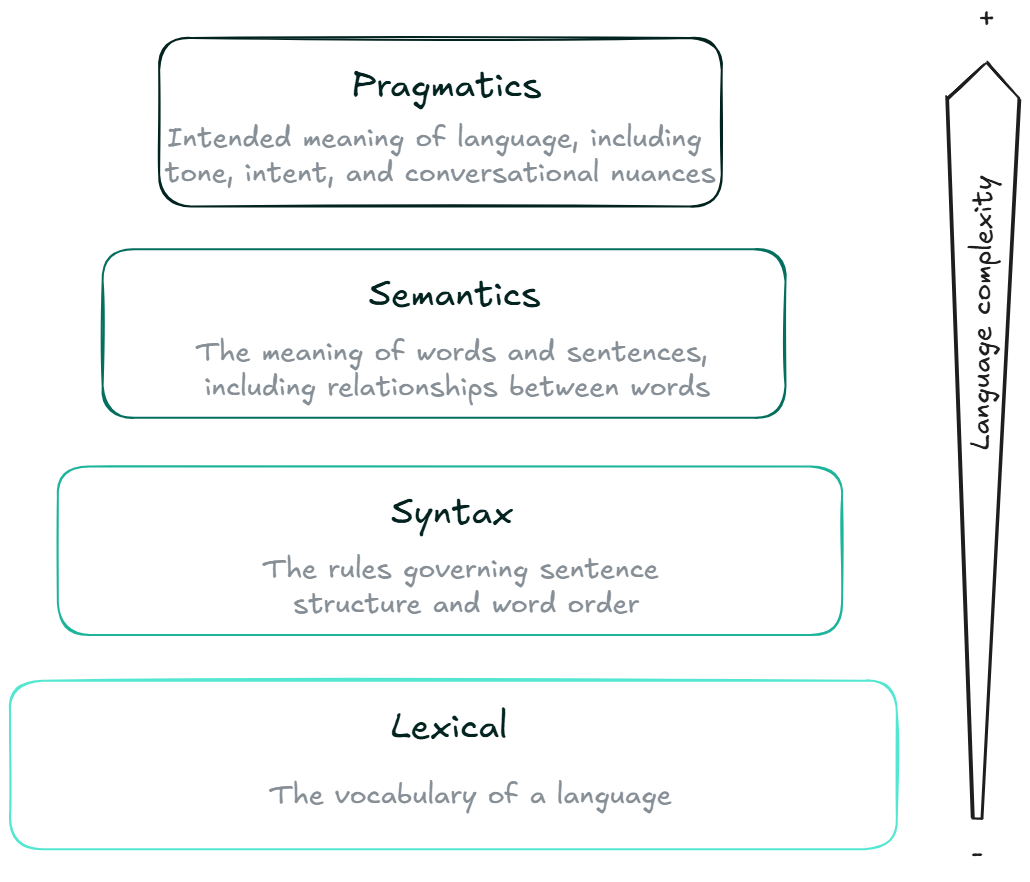

Language exhibits various levels of complexity, and recent advancements in text vectorization techniques are now capable of capturing these more intricate language domains.
Image source: Author
Word count vectorizer¶

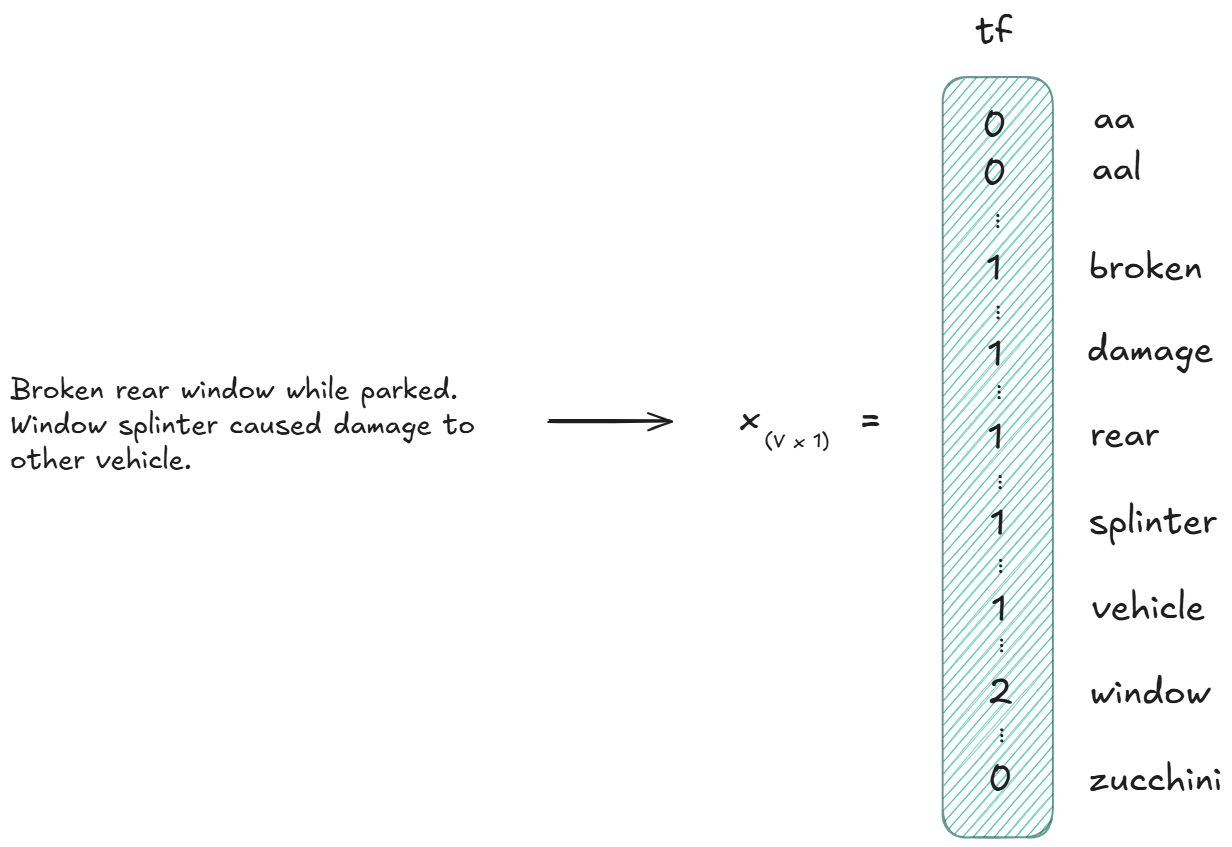

One of the simplest methods for text vectorization is the bag-of-words (BoW) representation, where a BoW vector has a length equal to the entire vocabulary, $V$, and its values indicate the frequency of each word's occurrence, $tf$, in a text.
BoW vectorization captures lexical features of language.
Image source: Author
In the following, we vectorize the corpus of claims descriptions via the number of occurences of each word from the vocabulary by using
scikit-learn's CountVectorizer class.
from sklearn.feature_extraction.text import CountVectorizer
vectorizer = CountVectorizer(vocabulary=vocabulary, lowercase=True)
X = vectorizer.fit_transform(df_claims.claim_description.values)
Given the fitted vectorizer, we can now transform any string into a count vector representation.
x = vectorizer.transform([claim])
from util import print_sparse_vector
print_sparse_vector(x, vocabulary)
x(1x16283) = [0 0 0 ... 1 ... 1 ... 1 ... 1 ... 1 ... 2 ... 0 0 0]
Non-zero elements: broken : 1884 -> 1 damage : 3708 -> 1 rear : 11408 -> 1 splinter : 13421 -> 1 vehicle : 15535 -> 1 window : 16035 -> 2
The resulting vector has $V$ = 16,283 elements with only 6 of it being non-zero. High-dimensional vectors with predominantly zero values are called sparse vectors.
Sparse vectors are defined by their high dimensionality, with the majority of their elements being zero. This characteristic makes sparse vector embeddings especially valuable for traditional information retrieval tasks, like keyword matching, where identifying the presence or absence of specific terms is essential.
Some words of the above claim are not part of the vocabulary because they are not in the dictionary ...
'parked' in dictionary, 'caused' in dictionary
(False, False)
... or because they are stopwords.
'while' in stopwords_en, 'to' in stopwords_en, 'other' in stopwords_en
(True, True, True)
Weighted word count vectorizer¶

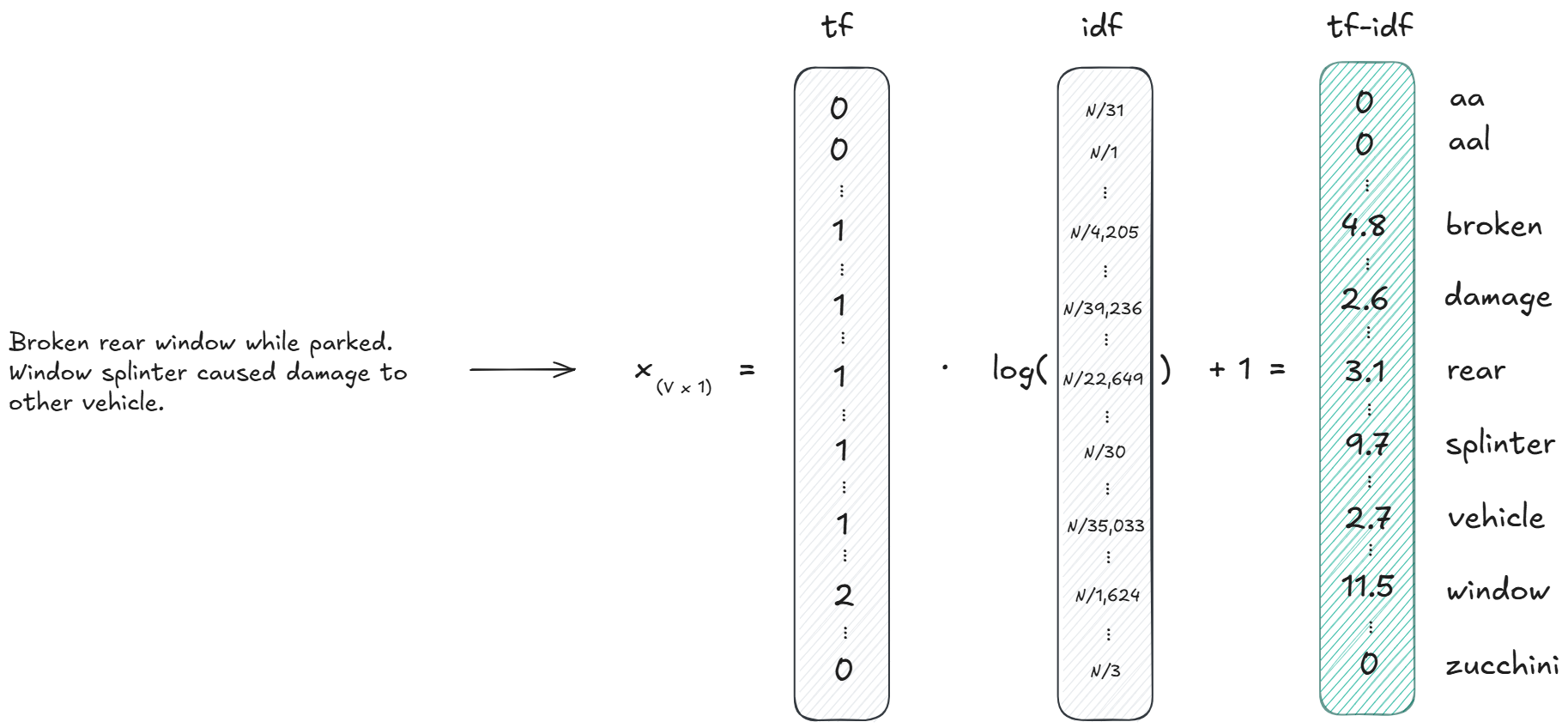

Weighted Bag-of-Words techniques like TF-IDF (Term Frequency-Inverse Document Frequency) assign higher relevance to words that appear in fewer documents, emphasizing their uniqueness by comparing a word's frequency in a specific text to its overall frequency in the corpus.
Tf-idf vectorization is based on the BoW model capturing lexical features of language in the first place.
Image source: Author
We use scikit-learn's TfidfVectorizer to get a weighted term frequency representation of the claims descriptions.
from sklearn.feature_extraction.text import TfidfVectorizer
vectorizer = TfidfVectorizer(
vocabulary=vocabulary,
lowercase=True,
use_idf=True,
smooth_idf=False,
norm=None)
X = vectorizer.fit_transform(df_claims.claim_description.values)
Again, given the fitted vectorizer, we can now transform any string into a count vector representation.
x = vectorizer.transform([claim])
from util import print_sparse_vector
print_sparse_vector(x, vocabulary)
x(1x16283) = [0.0 0.0 0.0 ... 4.818 ... 2.585 ... 3.135 ... 9.761 ... 2.699 ... 11.539 ... 0.0 0.0 0.0]
Non-zero elements: broken : 1884 -> 4.8181356948822005 damage : 3708 -> 2.585316845613897 rear : 11408 -> 3.1345422376866767 splinter : 13421 -> 9.760730045216887 vehicle : 15535 -> 2.6985098500706153 window : 16035 -> 11.538559812314837
The tf-idf value is derived as follows:
$tf\text{-}idf = term \, frequency \times log\left(\frac{number \, of \, documents}{document \, frequency}\right) + 1 = tf \times log\left(\frac{N}{df}\right) + 1$
For the word 'broken', for example, the value can be derived as follows:
# Document frequency: How many documents contain the word 'broken'
word = re.compile(r'(?u)\bbroken\b')
df = df_claims.claim_description.apply(lambda text: bool(word.search(text))).sum()
df
4204
# Number of documents: How many claims are in the dataset
N = df_claims.shape[0]
N
191363
# Term frequency: How many times the word 'broken' appears in the claim
tf = 1
import numpy as np
tf * np.log(N/df) + 1
4.8181356948822005

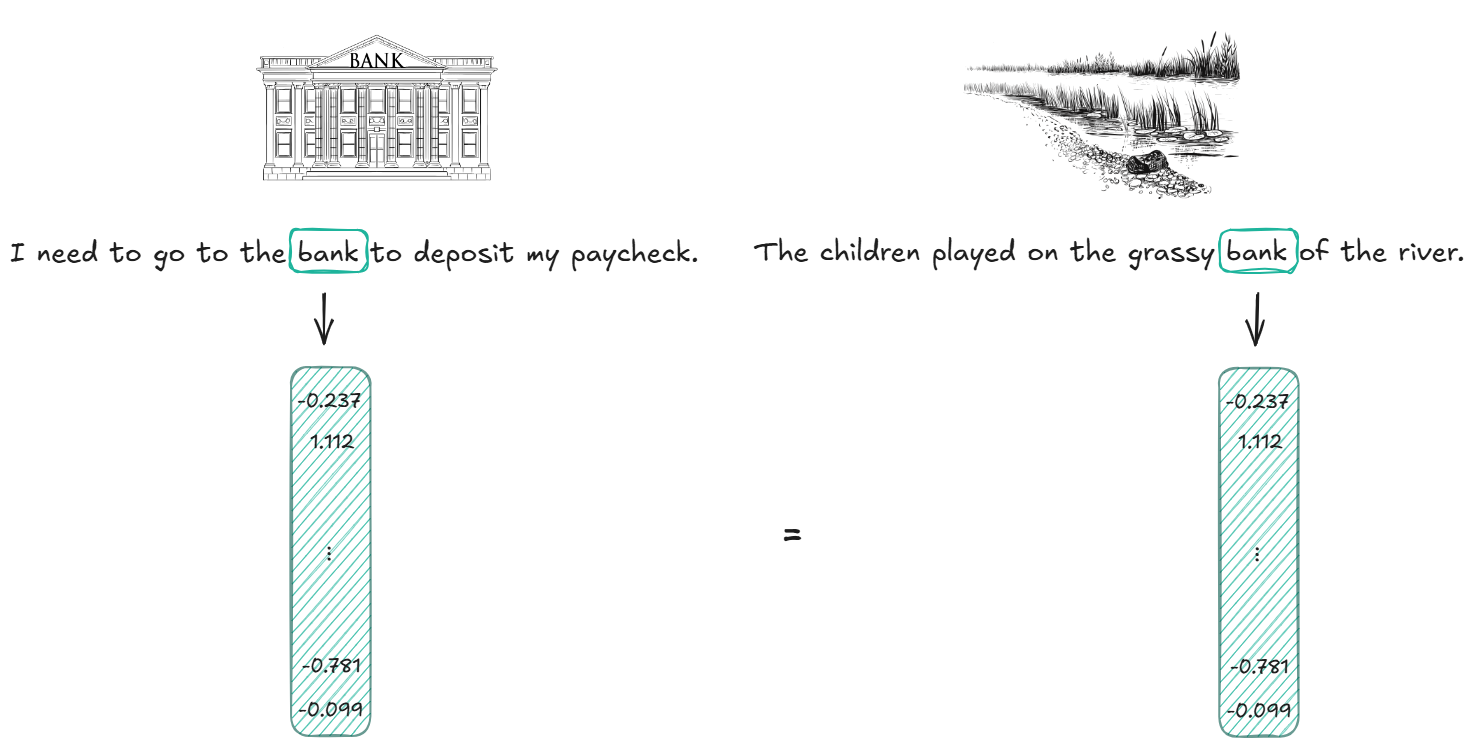

The sparse, count-based methods previously discussed fail to capture the meanings of words and phrases. Words are not merely combinations of letters; they embody meanings and contextual usages that reflect their semantics, extending beyond their fundamental lexical characteristics
The following vectorization techniques are designed to effectively capture the semantic properties of words.
Static word embeddings¶
The basic idea of word embeddings can be best described by the following quote.
"You shall know a word by the company it keeps!"
Firth (1957)
This means that in order to represent the semantic meaning of a word, knowing its surrounding words is essential.
word2vec employs neural language modeling to create vector representations of words, utilizing deep learning techniques to convert words into numerical vectors. These vectors encapsulate the meaning of a word by taking into account the context provided by surrounding words.
Image source: Author

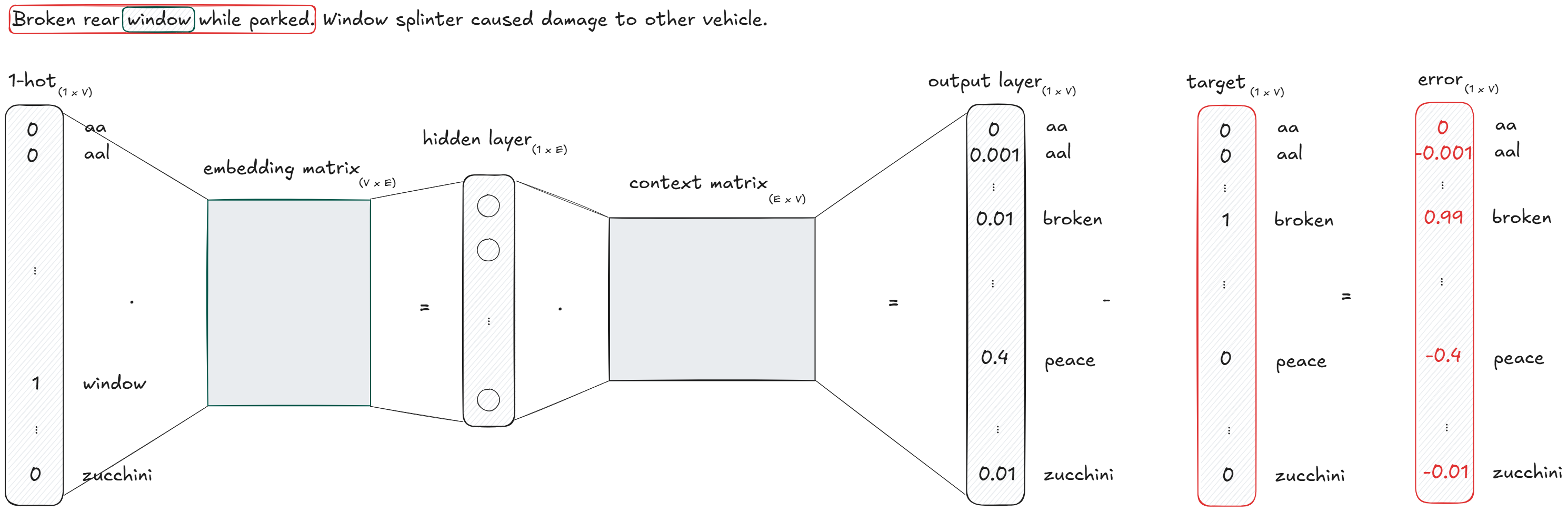

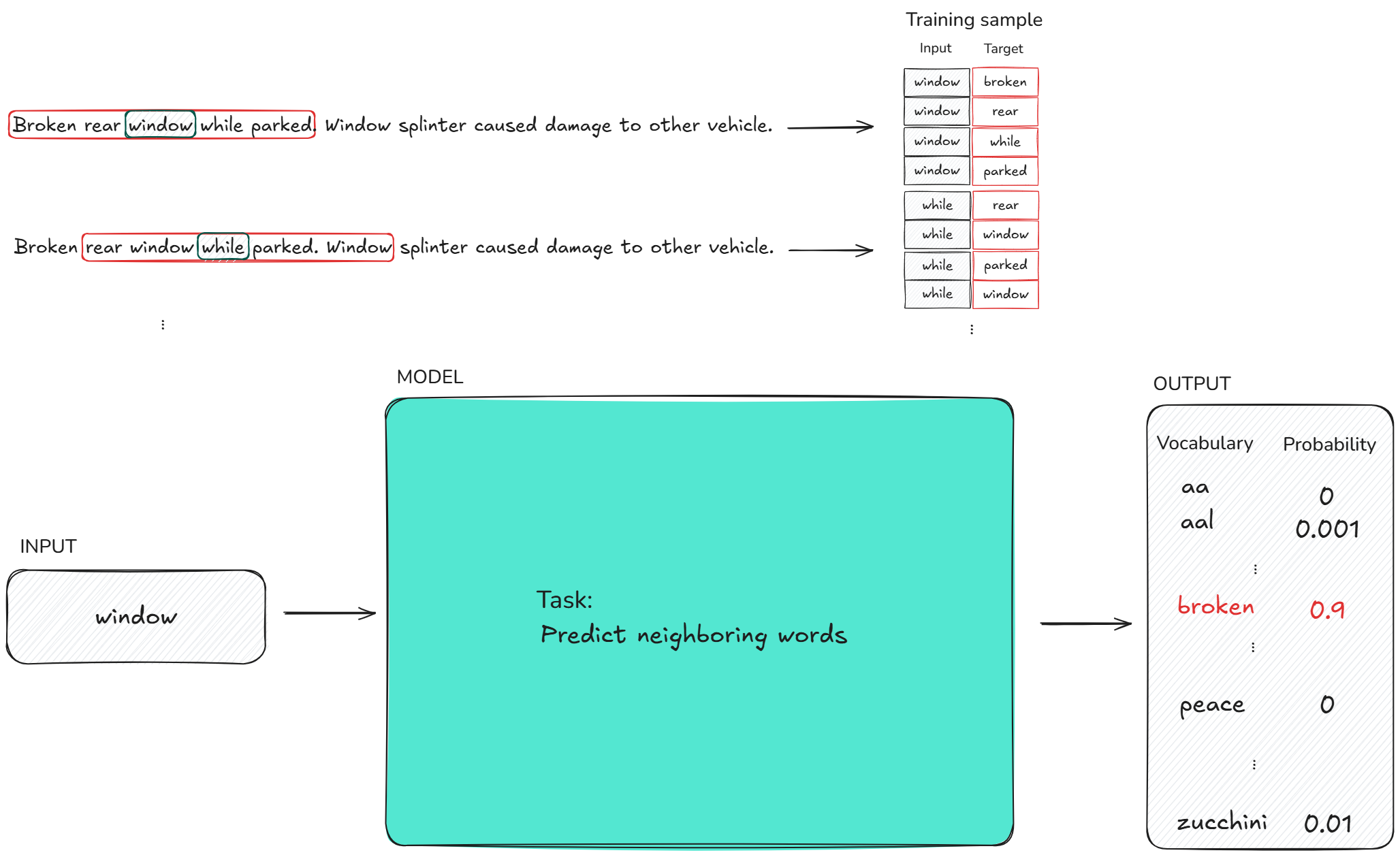

word2vec comes in many variants. The variant below employs a shallow neural network where the learning task is to predict surrounding words given a target word as input. This approach is called Continuous Bag of Words (CBoW).
Image source: Author

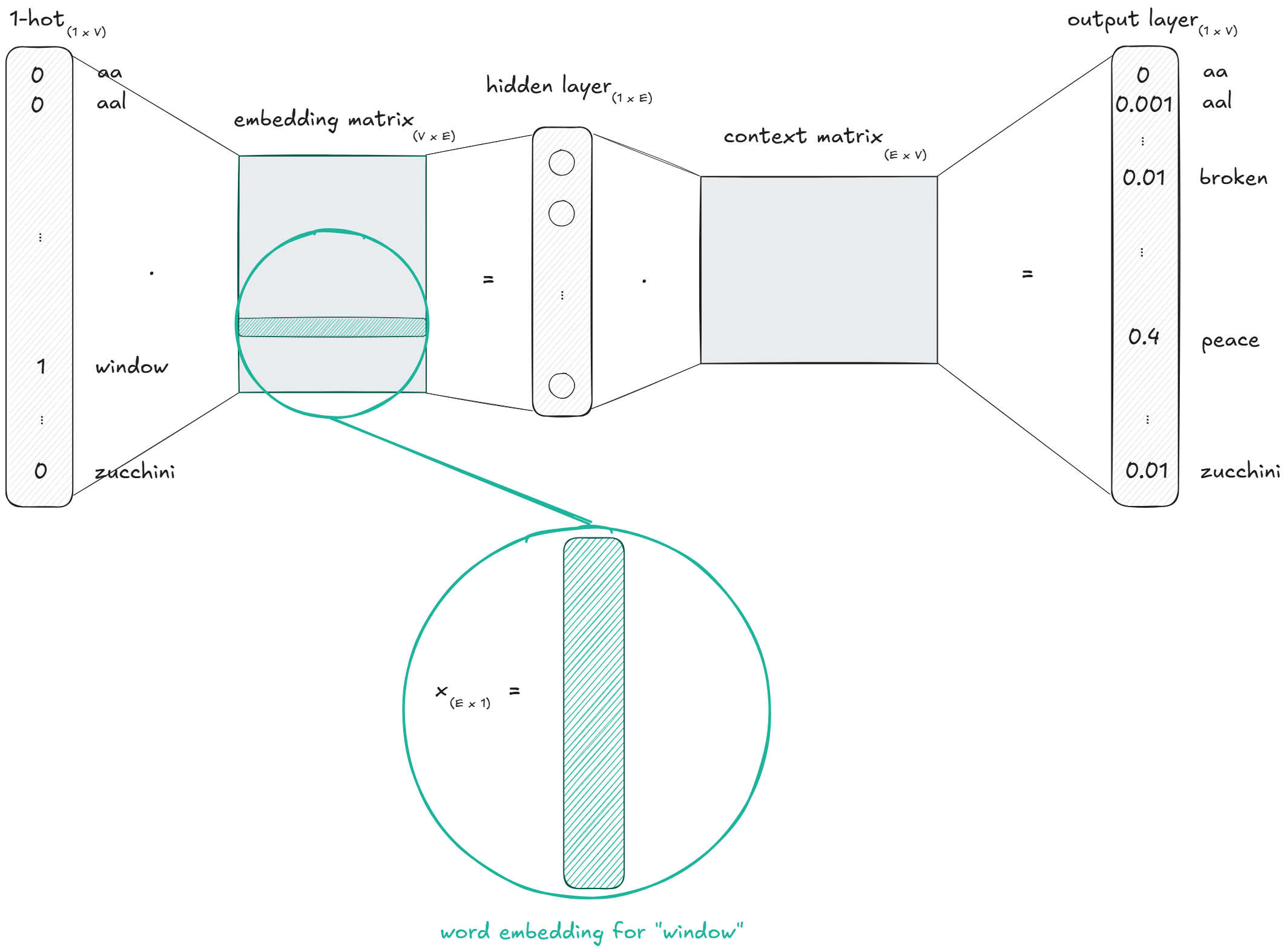

The word vector representations, known as word embeddings, are generated as a by-product of the training process within the weights matrix of the hidden layer.
Image source: Author
Training a neural language model to retrieve word embeddings for the vocabulary of our claims corpus is beyond the scope of this course.
However, there are many pre-trained word embeddings. Moving on, we work with Global Vectors for Word Representation (GloVe) vectors that where trained on Wikipedia articles.
import gensim.downloader
glove = gensim.downloader.load('glove-wiki-gigaword-50')
Pre-trained word embeddings come with their own vocabulary.
vocabulary = sorted(list(glove.key_to_index))
len(vocabulary)
400000
The vocabulary comprises 400,000 tokens.
The static word embedding can then be retrieved as simple key-value pairs.
x = glove.get_vector("window")
from util import print_vector
print_vector(x, rounding_digit=4)
x(1x50) = [0.671 0.543 0.294 ... -1.188 0.514 -0.76]
The GloVe embeddings have only $E$ = 50 elements which is notably smaller than the sparse vectors introduced before (note their size equaled the vocabulary size $V$, with $V >> E$.). Word embeddings are referred to as dense vectors where most elements contain non-zero values, capturing rich semantic relationships and syntactic information.
The semantic information captured by word embeddings becomes apparent when looking at the most similar words to a certain target word.
glove.most_similar("insured")
[('insures', 0.7770076990127563),
('premiums', 0.7484705448150635),
('uninsured', 0.7398187518119812),
('nonperforming', 0.7294138073921204),
('borrowers', 0.7286937236785889),
('homeowners', 0.7117431163787842),
('policyholders', 0.7088398933410645),
('compensated', 0.7084636688232422),
('taxpayers', 0.7040116786956787),
('delinquent', 0.7036601305007935)]
Not only are similar words like 'insured' and 'policyholders' positioned close to each other in vector space, but it is also possible to perform

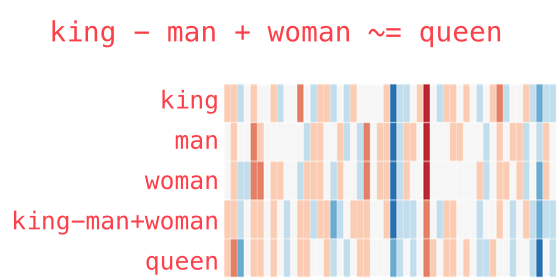

arithmetic operations such as king - man + woman, which reveal the underlying semantic meanings captured by word embeddings.
Image source: Jay Alammar
glove.most_similar(positive=['king', 'woman'], negative=['man'], topn=3)
[('queen', 0.8523604273796082),
('throne', 0.7664334177970886),
('prince', 0.7592144012451172)]
The development of word embeddings has significantly advanced AI's capabilities in NLP applications, yet they still face notable challenges in effectively representing text as meaningful vectors:
- Limitations to words: While word2vec excels at vectorizing individual words, it does not extend this capability to entire texts, such as descriptions of claims. This restricts its utility in contexts where understanding the full meaning of phrases or sentences is crucial.
A seemingly straightforward solution for translating entire sentences, paragraphs, and documents into dense vector representations involves averaging the word embeddings of all words in a sentence to create a single sentence embedding.
claim
'Broken rear window while parked. Window splinter caused damage to other vehicle.'
word_embeddings = np.array([glove.get_vector(word) for word in tokenize_pattern.findall(claim.lower())])
word_embeddings.shape
(12, 50)
x = word_embeddings.mean(axis=0)
print_vector(x, rounding_digit=4)
x(1x50) = [0.704 -0.065 0.588 ... -0.505 0.175 -0.563]
In practice, this approach doesn’t really deliver the best results.
-
Static Nature of Embeddings: Traditional static embeddings fail to adapt to the context in which a word appears. As a result, the same vector is assigned to a word regardless of its varying meanings in different sentences, leading to potential misinterpretations of context and nuance.
Image source: Author
- Unknown words: word2vec cannot handle unknown or out-of-vocabulary words, but it can generate vector representations for the words that are included in its vocabulary.
To address these limitations, recent advancements in NLP have introduced contextualized (sentence) embeddings, which we will explore in more detail next.
Contextualized embeddings¶
The most prominent and widespread way to derive contextualized embeddings are Bidirectional Encoder Representations from Transformers (BERT) by Google and its many extensions.
There are several training and architectural factors that enable BERT to address the challenges associated with static embeddings. Below is a brief overview:
- Tokenization
- BERT employs subword tokens to represent out-of-vocabulary words, allowing terms like "underwriting" to be split into
['under', '##writing'], enabling vector representation even if the term wasn't in the training corpus.
- It also uses special tokens like
[CLS]for entire sentences and[SEP]to separate two sentences.
- Initial Embedding Layer
Each token is converted into a dense vector representation through an embedding layer.
This layer combines three types of embeddings:
- Token embeddings: Represent the meaning of each token.
- Position embeddings: Encode the position of each token in the sequence, allowing BERT to understand word order.
- Segment embeddings: Indicate whether a token belongs to the first or second sentence in tasks involving sentence pairs.

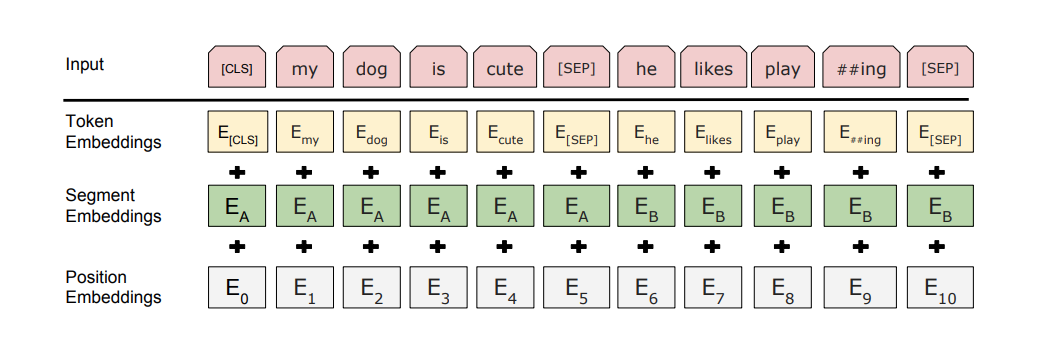

In BERT, the input embeddings are created by adding together the token embeddings, segmentation embeddings, and position embeddings.
Image source: Devlin et al.
- Transformer Encoder Layers
- BERT utilizes a stack of transformer encoder layers that apply self-attention mechanisms to analyze relationships between all tokens in the input sequence. This enables BERT to capture the context of each token based on its surrounding tokens, allowing for a bidirectional understanding of context.
- The embeddings for each token are updated iteratively, incorporating more contextual information at each step.

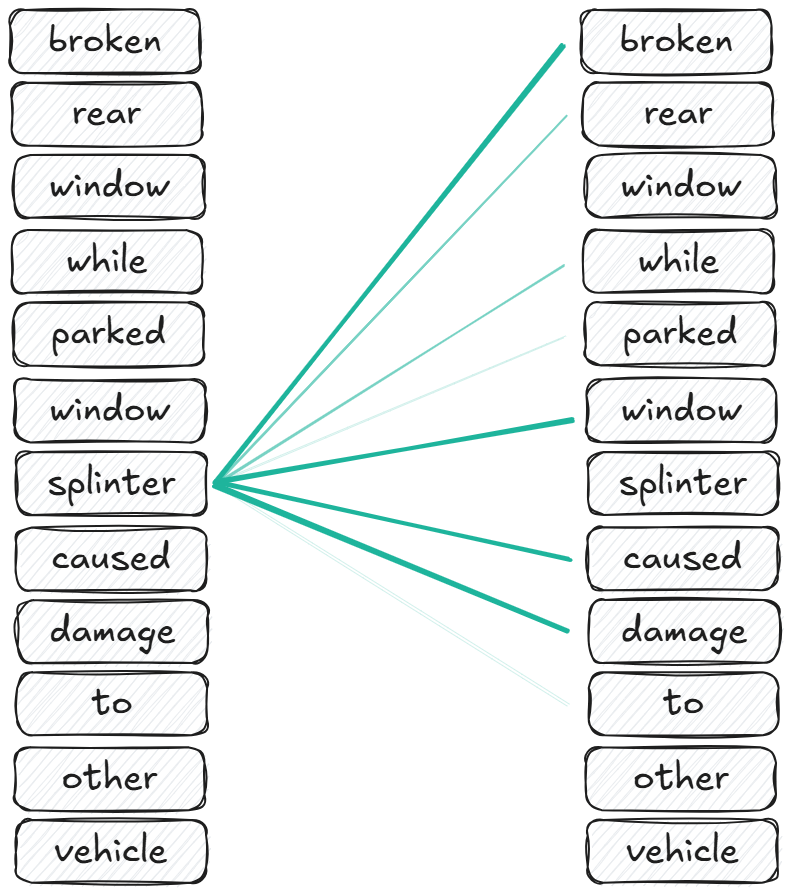

Attention layer allows model to learn how tokens are associated to one another.
Image source: Author
- Smart Pre-training Tasks
-

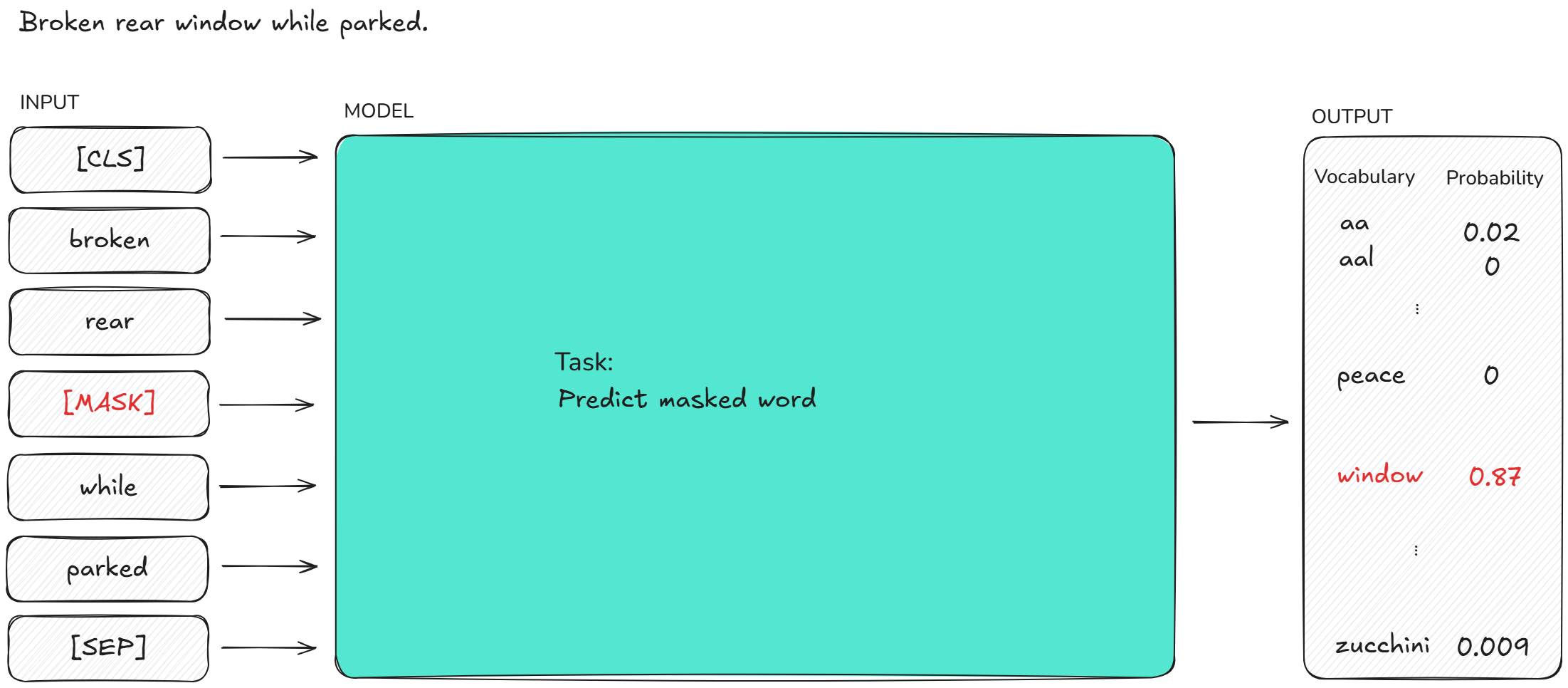

Masked Language Model: In this task, 15% of the input tokens are randomly masked, and the model is trained to predict these masked tokens based on their surrounding context. This approach enables BERT to learn bidirectional representations.
Image source: Author
-

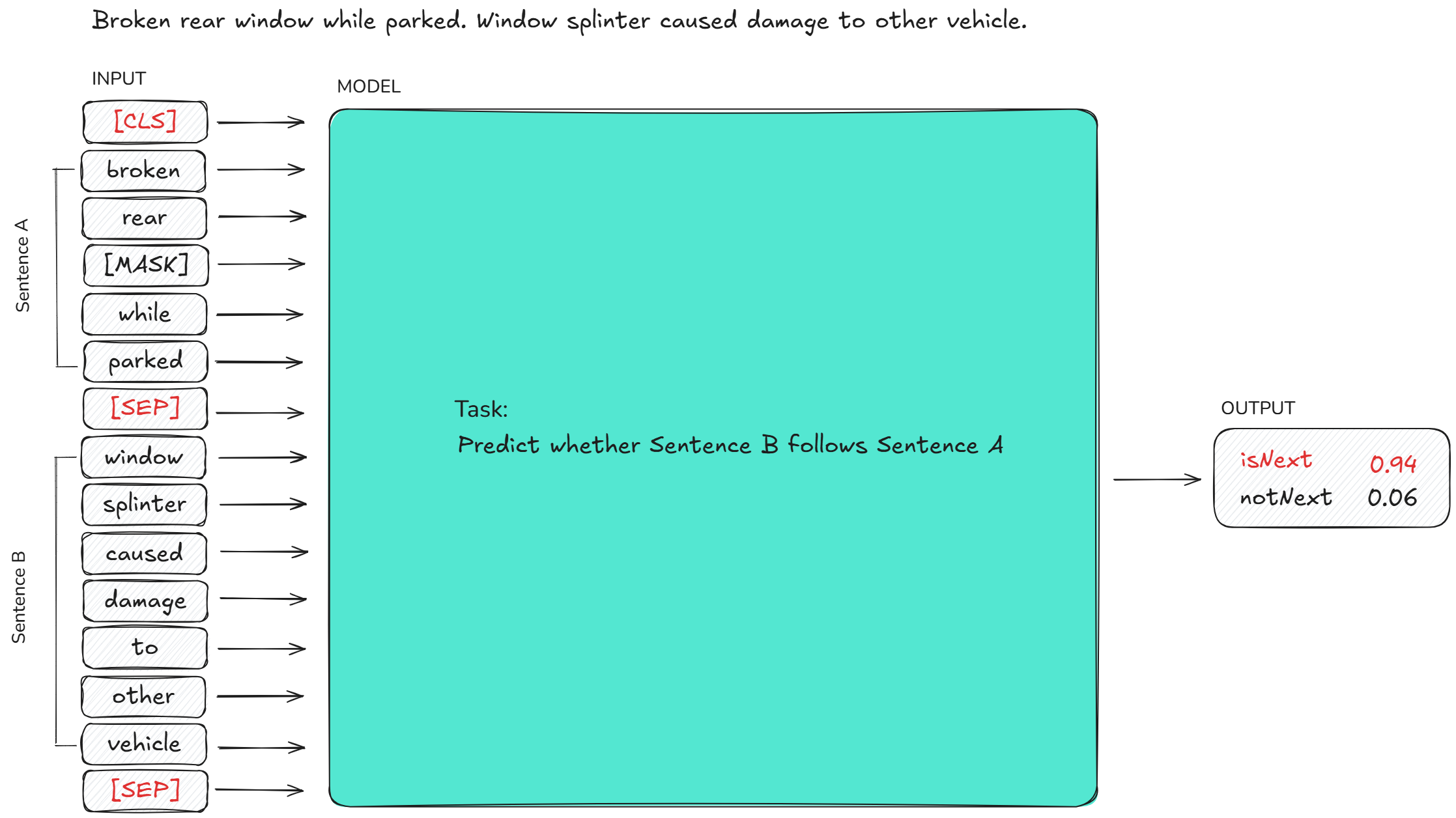

Next Sentence Prediction: BERT is trained to predict whether one sentence logically follows another, enhancing the model's ability to understand relationships between sentences.
Image source: Author
Let's examine BERT's functionality in detail when we provide it with input text. To do this, we download the weights of the pre-trained
bert-base-uncased model, which was trained on a dataset of 11,038 unpublished books and English Wikipedia.
from transformers import BertTokenizer, BertModel
tokenizer = BertTokenizer.from_pretrained('bert-base-uncased')
bert = BertModel.from_pretrained("bert-base-uncased")
We can then utilize the model's tokenizer to first break down the input text into tokens, and subsequently use the model to generate contextualized embeddings for each token.
# Tokenization
encoded_input = tokenizer(claim, return_tensors='pt')
# Vectorization
output = bert(**encoded_input)
Let us print the tokens that were generated by BERT.
tokens = tokenizer.convert_ids_to_tokens(encoded_input['input_ids'].tolist()[0])
tokens
['[CLS]', 'broken', 'rear', 'window', 'while', 'parked', '.', 'window', 'splinter', 'caused', 'damage', 'to', 'other', 'vehicle', '.', '[SEP]']
Next, we can also print the contextualized embeddings generated by BERT using the custom function print_bert_vector().
from util import print_bert_vector
print_bert_vector(output.last_hidden_state, tokens)
| [CLS] -> | x(1x768) = [-1.067 -0.474 -0.626 ... -0.068 -0.097 0.156] |
| broken -> | x(1x768) = [-0.69 0.039 -0.586 ... -0.476 0.07 -0.352] |
| rear -> | x(1x768) = [-0.214 -0.371 0.071 ... -1.1 -0.461 -0.931] |
| window -> | x(1x768) = [0.2 -0.116 -0.029 ... -0.529 -0.915 -0.421] |
| while -> | x(1x768) = [-1.046 -0.632 -0.189 ... -0.716 -0.707 -0.548] |
| parked -> | x(1x768) = [0.778 -0.812 0.338 ... -0.766 -0.796 -0.03] |
| . -> | x(1x768) = [-0.827 -0.49 -0.47 ... 0.414 -0.117 -0.341] |
| window -> | x(1x768) = [0.461 -0.245 0.185 ... -0.411 -0.437 -0.047] |
| splinter -> | x(1x768) = [0.262 -0.126 -0.163 ... -0.468 -0.7 -0.433] |
| caused -> | x(1x768) = [-0.425 -0.495 0.009 ... -0.283 -0.725 -0.069] |
| damage -> | x(1x768) = [-0.395 -0.231 -0.325 ... -0.664 -0.762 0.109] |
| to -> | x(1x768) = [-0.378 0.027 0.161 ... -0.051 -0.044 0.199] |
| other -> | x(1x768) = [-0.616 -0.732 0.179 ... -0.904 -0.043 -0.78] |
| vehicle -> | x(1x768) = [0.334 -0.29 0.074 ... -0.704 -0.161 -0.062] |
| . -> | x(1x768) = [-0.583 -0.951 -0.364 ... 0.636 -0.065 -0.227] |
| [SEP] -> | x(1x768) = [0.748 0.01 -0.508 ... 0.386 -0.498 -0.041] |
You may notice a few key points:
- The special tokens
[CLS]and[SEP]each have unique embeddings. - Punctuation marks are represented by their own distinct embeddings.
- The token embeddings for the word "window" vary depending on the different surrounding in which it appears.
There is one final step needed to convert our claims descriptions into fixed-size, highly contextualized embeddings.
While BERT captures contextual information at the token level, its default embeddings are not fine-tuned to capture semantic relationships between entire sentences.
To generate sentence embeddings, you typically need to pool or average the token embeddings (e.g., mean pooling or using
the [CLS] token). However, this approach often results in embeddings that are not optimal for sentence similarity or clustering tasks.
This issue is solved by Sentence Transformers (SBERT) which essentially fine-tunes BERT using specific training objectives that encourage sentence embeddings to align with semantic similarity. It does so by using a dataset that contains sentence pairs labeled for entailment, contradiction, and semantic independence.
In the remaining course, we will thus work with SBERT embeddings using the sentence-transformers library.
from sentence_transformers import SentenceTransformer
There are various versions of SBERT available. For our purposes, we will use the all-MiniLM-L6-v2 model.
sbert = SentenceTransformer("all-MiniLM-L6-v2")
x = sbert.encode(claim, convert_to_tensor=True)
print_vector(x, rounding_digit=0)
x(1x384) = [-0.04 0.049 0.106 ... 0.099 -0.038 0.144]
As we can see, SBERT converts our claim description into a single 384-dimensional vector.
With the SBERT embeddings, we can demonstrate that semantically similar sentences are positioned close together in vector space, while semantically distinct sentences are located farther apart.
We measure how close two vectors are by using cosine similarity which essentially measures the angle between two vectors:
$cos (\theta) = \frac{x_{1} x_{2}}{||x_1|| ||x_2||} = \frac{\sum_{i=1}^n x_{1,i} x_{2, i}}{\sum_{i=1}^n x_{1,i}^2 \sum_{i=1}^n x_{2, i}^2} \in [-1; 1]$
Interpretation of values:
- 1: Indicates the vectors are identical (perfectly aligned), meaning the text is highly semantically similar.
- 0: Indicates the vectors are orthogonal (at a 90-degree angle), meaning there's no semantic similarity between the text.
- -1: Indicates the vectors are in opposite directions, meaning the text is semantically dissimilar
Typically, we observe values between 0 and 1 representing different degrees of semantic similarity, with higher values indicating greater similarity.
# Auto Liability claim example
claim_1 = 'Broken rear window while parked. Window splinter caused damage to other vehicle.'
x_1 = sbert.encode(claim_1)
# Another Auto Liability claim example
claim_2 = "Truck struck car on the side while it was pulling into yard. Both cars scratched."
x_2 = sbert.encode(claim_2)
# Theft claim example
claim_3 = "Someone went into the establishment and stole $5005 from the safe."
x_3 = sbert.encode(claim_3)
While claim_1 and claim_2 refer to claims that are typically covered under an Auto Liability Insurance,
claim_3, in contrast, falls under a Theft Insurance policy.
from scipy import spatial
1 - spatial.distance.cosine(x_1, x_2), 1 - spatial.distance.cosine(x_2, x_3),
(0.5580403804779053, 0.22865628387499715)
Image source: Author

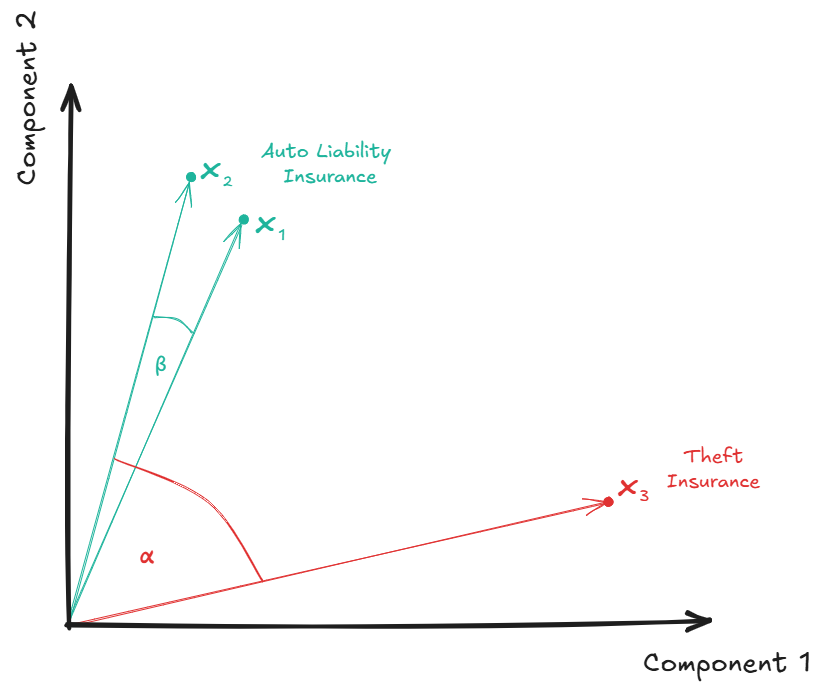

SBERT generates embeddings that position the two Auto Liability Insurance claims close together in vector space, while the Theft Insurance claim is more distant from them.
In the next section, we will utilize these SBERT embeddings to cluster the claims into meaningful groups.
Topic modeling¶
A common method for clustering text data is topic modeling, which provides a detailed representation for each cluster.
Topic modeling is a statistical technique used in NLP to discover abstract topics within a collection of documents. It groups documents with similar semantic content into clusters, or "topics," which represent the underlying themes of the text data.
In the following, we use a topic modeling approach that leverages SBERT embeddings to uncover recurring themes or patterns in the claims descriptions.
The goal is to group claims into clusters such as "vehicle accidents", "theft incidents", "natural disaster", etc. enabling faster and more accurate routing to specialized teams.
We do so by using the library bertopic.
from bertopic import BERTopic
bertopic follows a modular approach to vectorize, group and represent clusters in text corpora.
Image source: Author
# 1: Use SBERT to vectorize claims
sbert = SentenceTransformer("all-MiniLM-L6-v2")
# 2: Use UMAP (Uniform Manifold Approximation & Projection) for dimensionality reduction
from umap import UMAP
umap_model = UMAP(n_neighbors=15, n_components=5, min_dist=0.0, metric='cosine')
If you are interested in more details about UMAP, you can find details here.
# 3: Use HDBSCAN (Hierarchical Density-Based Spatial Clustering of Applications with Noise) for clustering
from hdbscan import HDBSCAN
hdbscan_model = HDBSCAN(min_cluster_size=100, prediction_data=True)
Read here if you want to learn more about clustering via HDBSCAN.
# 4: Use CountVectorizer to tokenize topics
vectorizer_model = CountVectorizer(vocabulary=vocabulary, lowercase=True, stop_words=stopwords_en)
# 5: Use ClassTfidfTransformer to filter important words in topics
from bertopic.vectorizers import ClassTfidfTransformer
ctfidf_model = ClassTfidfTransformer()
Note that ClassTfidfTransformer follows the same logic than the tf-idf vectorization introduced earlier in this course with the simple
distinction that all claims that are clustered into the same topic are joined to one large document.
topic_model = BERTopic(
embedding_model = sbert,
umap_model = umap_model,
hdbscan_model = hdbscan_model,
vectorizer_model = vectorizer_model,
ctfidf_model = ctfidf_model
)
We can now fit the topic model (i.e. conducting all of the five steps above) based on the claims descriptions.
topics, probs = topic_model.fit_transform(df_claims.claim_description.values)
With the method get_topic_info() we can now inspect the clusters that were generated from the calims descriptions.
topic_model.get_topic_info()
| Topic | Count | Name | Representation | Representative_Docs | |
|---|---|---|---|---|---|
| 0 | -1 | 71991 | -1_ov_iv_damage_driver | [ov, iv, damage, driver, injuries, water, stru... | [the ov was parked and unoccupied on the side ... |
| 1 | 0 | 13262 | 0_truck_trailer_lane_vehicle | [truck, trailer, lane, vehicle, car, driver, t... | [a truck made a u turn and backed into our tru... |
| 2 | 1 | 5275 | 1_ov_incurred_bumper_iv | [ov, incurred, bumper, iv, fender, rear, repor... | [the iv driver was turning left out of a parki... |
| 3 | 2 | 3798 | 2_guest_fell_slipped_walking | [guest, fell, slipped, walking, restroom, show... | [guest fell and hit his head on side table., w... |
| 4 | 3 | 3760 | 3_sp_tow_police_claimant | [sp, tow, police, claimant, occupied, spv, veh... | [sp was stopped at stop sign when claimant veh... |
| ... | ... | ... | ... | ... | ... |
| 211 | 210 | 105 | 210_vs_pd_operator_bus | [vs, pd, operator, bus, 7th, side, car, ballen... | [pd vs operator was driving through the gate w... |
| 212 | 211 | 104 | 211_consumption_vision_related_caused | [consumption, vision, related, caused, alleges... | [claimant alleges consumption of elmiron cause... |
| 213 | 212 | 103 | 212_ice_slipped_patch_snow | [ice, slipped, patch, snow, fell, sidewalk, pa... | [slipped/fell on ice in the parking lot, slipp... |
| 214 | 213 | 103 | 213_payment_team_dod_00 | [payment, team, dod, 00, estimate, delivery, s... | [**payment only** delivery team damaged wall. ... |
| 215 | 214 | 102 | 214_stolen_guest_items_broken | [stolen, guest, items, broken, hotel, tires, l... | [guest s vehicle was stolen, guest's vehicle w... |
216 rows × 5 columns
In light of the large number of clusters, we will reduce the number of topics to a fixed size of 30. While it is generally advisable to iterate to determine the "optimal" number of topics, this process is beyond the scope of this course.
topic_model.reduce_topics(df_claims.claim_description.values, nr_topics=30)
topic_model.get_topic_info()
| Topic | Count | Name | Representation | Representative_Docs | |
|---|---|---|---|---|---|
| 0 | -1 | 71991 | -1_iv_ov_damage_driver | [iv, ov, damage, driver, injuries, vehicle, st... | [the ov was stopped at a red light, when it wa... |
| 1 | 0 | 41607 | 0_vehicle_driver_claimant_truck | [vehicle, driver, claimant, truck, sp, side, h... | [sp vehicle was driving on the road. claimant ... |
| 2 | 1 | 29758 | 1_iv_ov_reported_injuries | [iv, ov, reported, injuries, incurred, rear, d... | [small pd. while in the parking lot, iv was ma... |
| 3 | 2 | 17676 | 2_fell_guest_slipped_customer | [fell, guest, slipped, customer, walking, floo... | [guest was walking from the restaurant to thei... |
| 4 | 3 | 6914 | 3_guest_eating_tooth_found | [guest, eating, tooth, found, alleges, bit, co... | [claimant alleges she purchased chicken mcnugg... |
| 5 | 4 | 3417 | 4_water_record_apt_repairs | [water, record, apt, repairs, complete, person... | [record only- fire sprinkler head leaking in ... |
| 6 | 5 | 3041 | 5_gas_fire_pump_fuel | [gas, fire, pump, fuel, tank, oil, hose, diese... | [gas, d1 pulled away from the gas pump without... |
| 7 | 6 | 2518 | 6_embedded_plaintiff_injury_claimant | [embedded, plaintiff, injury, claimant, allege... | [plaintiff alleges injury caused by embedded b... |
| 8 | 7 | 2497 | 7_windshield_roof_rock_155 | [windshield, roof, rock, 155, cracked, crack, ... | [had a rock hit my windshield and broke/cracke... |
| 9 | 8 | 2415 | 8_delivery_damaged_elevator_mth | [delivery, damaged, elevator, mth, floor, frid... | [customer's property was damaged during delive... |
| 10 | 9 | 2260 | 9_reg_bus_tp_tpv | [reg, bus, tp, tpv, passenger, causes, unknown... | [tpv struck parked bus. ... |
| 11 | 10 | 1597 | 10_wash_customer_states_candle | [wash, customer, states, candle, paint, car, w... | [car wash, customer alleges the car wash damag... |
| 12 | 11 | 1281 | 11_security_2023_approximately_2022 | [security, 2023, approximately, 2022, resident... | [at approximately 12:05 pm today, the office w... |
| 13 | 12 | 936 | 12_rock_fault_one_road | [rock, fault, one, road, license, vehicle, nod... | [rock from road - no one at fault, rock from r... |
| 14 | 13 | 846 | 13_catalytic_converter_stolen_converters | [catalytic, converter, stolen, converters, the... | [stolen catalytic converter, catalytic convert... |
| 15 | 14 | 396 | 14_incorrect_mistyped_strength_medication | [incorrect, mistyped, strength, medication, ex... | [mistyped - incorrect strength, mistyped incor... |
| 16 | 15 | 319 | 15_le_de_la_du | [le, de, la, du, et, en, un, camion, sur, il] | [alors que le chauffeur était en manoeu... |
| 17 | 16 | 233 | 16_lug_stud_nut_nuts | [lug, stud, nut, nuts, threaded, lugs, strippe... | [stripped lug nut broke stud, lug stud snapped... |
| 18 | 17 | 218 | 17_provided_setup_none_request | [provided, setup, none, request, get, one, , ,... | [not provided, not provided, not provided] |
| 19 | 18 | 177 | 18_cargo_mva_v1_leakage | [cargo, mva, v1, leakage, roof, got, damaged, ... | [v1 cargo got damaged due to roof leakage, v1 ... |
| 20 | 19 | 157 | 19_ov_iv_sawtell_tort | [ov, iv, sawtell, tort, corresponding, mi, rod... | [iv r/e ov, iv r/e ov, iv r/e ov] |
| 21 | 20 | 153 | 20_positive_tested_19_exposed | [positive, tested, 19, exposed, infected, po, ... | [the ee tested positive for covid 19., member ... |
| 22 | 21 | 131 | 21_unk_third_vehicle_party | [unk, third, vehicle, party, insured, parked, ... | [insured vehicle hit third party parked vehicl... |
| 23 | 22 | 131 | 22_slip_fall_trip_level | [slip, fall, trip, level, lor, records, mall, ... | [slip and fall, slip & fall, slip and fall] |
| 24 | 23 | 127 | 23_file_01_gd_gb | [file, 01, gd, gb, need, coverage, ab, ai, 02,... | [coverage file for 006138-004704-gd-01, covera... |
| 25 | 24 | 124 | 24_object_glass_hit_cary | [object, glass, hit, cary, fixed, bannerman, s... | [object hit glass, object hit glass d, object ... |
| 26 | 25 | 120 | 25_cpap_recall_cpa_mfg | [cpap, recall, cpa, mfg, recalled, replacement... | [cpap recall, cpap recall, cpap recall] |
| 27 | 26 | 110 | 26_gastric_illness_suffered_always | [gastric, illness, suffered, always, turnaroun... | [they suffered gastric illness, they suffered ... |
| 28 | 27 | 109 | 27_excavation_property_due_damage | [excavation, property, due, damage, fill, cent... | [damage to property due to excavation., damage... |
| 29 | 28 | 104 | 28_consumption_vision_related_caused | [consumption, vision, related, caused, alleges... | [claimant alleges consumption of elmiron cause... |
By using the get_document_info() method, we can identify which cluster has been assigned to each claim.
topic_model.get_document_info(df_claims.claim_description.values).sample(3)
| Document | Topic | Name | Representation | Representative_Docs | Top_n_words | Probability | Representative_document | |
|---|---|---|---|---|---|---|---|---|
| 126282 | customer sat on metal chair and it collapsed | -1 | -1_iv_ov_damage_driver | [iv, ov, damage, driver, injuries, vehicle, st... | [the ov was stopped at a red light, when it wa... | iv - ov - damage - driver - injuries - vehicle... | 0.000000 | False |
| 30839 | ov slammed on brakes to try and make a u-turn ... | -1 | -1_iv_ov_damage_driver | [iv, ov, damage, driver, injuries, vehicle, st... | [the ov was stopped at a red light, when it wa... | iv - ov - damage - driver - injuries - vehicle... | 0.000000 | False |
| 185532 | gate struck multiple vehicles. | 0 | 0_vehicle_driver_claimant_truck | [vehicle, driver, claimant, truck, sp, side, h... | [sp vehicle was driving on the road. claimant ... | vehicle - driver - claimant - truck - sp - sid... | 0.587509 | False |
Bonus: Using Generative AI to improve topic representations¶
The topic representations above consist of the tf-idf weighted top words for each cluster, providing an initial insight into the cluster's theme. By leveraging Generative AI, we can enhance the cluster representations to be even more detailed.
Load the API key.
import os
from dotenv import load_dotenv
# Load environment variables from .env file
load_dotenv()
# Access the API key
openai_api_key = os.getenv("OPENAI_API_KEY")
Instantiate the LLM.
import openai
from bertopic.representation import OpenAI
# Fine-tune topic representations with GPT
client = openai.OpenAI(api_key=openai_api_key)
representation_model = OpenAI(client, model="gpt-4o-mini", chat=True)
Update topic representation using the LLM.
topic_model.update_topics(df_claims.claim_description.values, representation_model=representation_model)
We can now observe that the topics are represented by detailed categories generated by the LLM, which utilized the top tf-idf keywords and the representative documents for each topic.
topic_model.get_topic_info()
| Topic | Count | Name | Representation | Representative_Docs | |
|---|---|---|---|---|---|
| 0 | -1 | 71991 | -1_Vehicle collision incidents | [Vehicle collision incidents] | [the ov was stopped at a red light, when it wa... |
| 1 | 0 | 41607 | 0_Vehicle Collision Incidents | [Vehicle Collision Incidents] | [sp vehicle was driving on the road. claimant ... |
| 2 | 1 | 29758 | 1_Vehicle accident reports | [Vehicle accident reports] | [small pd. while in the parking lot, iv was ma... |
| 3 | 2 | 17676 | 2_Slip and fall incidents | [Slip and fall incidents] | [guest was walking from the restaurant to thei... |
| 4 | 3 | 6914 | 3_Food-related injuries | [Food-related injuries] | [claimant alleges she purchased chicken mcnugg... |
| 5 | 4 | 3417 | 4_Water damage reports | [Water damage reports] | [record only- fire sprinkler head leaking in ... |
| 6 | 5 | 3041 | 5_Fuel pump incidents | [Fuel pump incidents] | [gas, d1 pulled away from the gas pump without... |
| 7 | 6 | 2518 | 6_Legal Injury Claims | [Legal Injury Claims] | [plaintiff alleges injury caused by embedded b... |
| 8 | 7 | 2497 | 7_Windshield damage incidents | [Windshield damage incidents] | [had a rock hit my windshield and broke/cracke... |
| 9 | 8 | 2415 | 8_Delivery damage complaints | [Delivery damage complaints] | [customer's property was damaged during delive... |
| 10 | 9 | 2260 | 9_Bus collision incidents | [Bus collision incidents] | [tpv struck parked bus. ... |
| 11 | 10 | 1597 | 10_Product Leakage Issues | [Product Leakage Issues] | [car wash, customer alleges the car wash damag... |
| 12 | 11 | 1281 | 11_Security incident reports | [Security incident reports] | [at approximately 12:05 pm today, the office w... |
| 13 | 12 | 936 | 12_Road incident liability | [Road incident liability] | [rock from road - no one at fault, rock from r... |
| 14 | 13 | 846 | 13_Catalytic converter theft | [Catalytic converter theft] | [stolen catalytic converter, catalytic convert... |
| 15 | 14 | 396 | 14_Medication errors | [Medication errors] | [mistyped - incorrect strength, mistyped incor... |
| 16 | 15 | 319 | 15_Accidents involving trucks | [Accidents involving trucks] | [alors que le chauffeur était en manoeu... |
| 17 | 16 | 233 | 16_Lug nut issues | [Lug nut issues] | [stripped lug nut broke stud, lug stud snapped... |
| 18 | 17 | 218 | 17_Setup issues request | [Setup issues request] | [not provided, not provided, not provided] |
| 19 | 18 | 177 | 18_Cargo damage issues | [Cargo damage issues] | [v1 cargo got damaged due to roof leakage, v1 ... |
| 20 | 19 | 157 | 19_Legal case summary | [Legal case summary] | [iv r/e ov, iv r/e ov, iv r/e ov] |
| 21 | 20 | 153 | 20_COVID-19 Exposure Cases | [COVID-19 Exposure Cases] | [the ee tested positive for covid 19., member ... |
| 22 | 21 | 131 | 21_Vehicle accident claims | [Vehicle accident claims] | [insured vehicle hit third party parked vehicl... |
| 23 | 22 | 131 | 22_Slip and fall incidents | [Slip and fall incidents] | [slip and fall, slip & fall, slip and fall] |
| 24 | 23 | 127 | 23_File requests and needs | [File requests and needs] | [coverage file for 006138-004704-gd-01, covera... |
| 25 | 24 | 124 | 24_Incident involving object | [Incident involving object] | [object hit glass, object hit glass d, object ... |
| 26 | 25 | 120 | 25_CPAP recall issues | [CPAP recall issues] | [cpap recall, cpap recall, cpap recall] |
| 27 | 26 | 110 | 26_Gastric illness experiences | [Gastric illness experiences] | [they suffered gastric illness, they suffered ... |
| 28 | 27 | 109 | 27_Property damage from excavation | [Property damage from excavation] | [damage to property due to excavation., damage... |
| 29 | 28 | 104 | 28_Elmiron vision injuries | [Elmiron vision injuries] | [claimant alleges consumption of elmiron cause... |
Some topics seem to be duplicated. We can simply merge them using the merge_topics() method.
topics_to_merge = [
[-1, 19], # noise topics
[0, 1], # vehicle accidents
[2, 24] # slip and fall incidents
]
topic_model.merge_topics(df_claims.claim_description.values, topics_to_merge)
topic_model.get_topic_info()
| Topic | Count | Name | Representation | Representative_Docs | |
|---|---|---|---|---|---|
| 0 | -1 | 72148 | -1_Vehicle accident reports | [Vehicle accident reports] | [the iv was making a left turn at the intersec... |
| 1 | 0 | 71365 | 0_Vehicle accident reports | [Vehicle accident reports] | [the iv rear ended the ov that was stopped at ... |
| 2 | 1 | 17800 | 1_Slip and fall incidents | [Slip and fall incidents] | [claimant alleges as she was walking to the bu... |
| 3 | 2 | 6914 | 2_Food safety complaints | [Food safety complaints] | [claimant alleges that while she was eating a ... |
| 4 | 3 | 3417 | 3_Water damage reports | [Water damage reports] | [record only- water heater leaking in apt#203... |
| 5 | 4 | 3041 | 4_Fueling mishaps | [Fueling mishaps] | [d1 pulled away from the gas pump without taki... |
| 6 | 5 | 2518 | 5_Injury claims litigation | [Injury claims litigation] | [plaintiff alleges injury caused by embedded b... |
| 7 | 6 | 2497 | 6_Windshield damage incidents | [Windshield damage incidents] | [the caller was driving down the highway when ... |
| 8 | 7 | 2415 | 7_Delivery damage issues | [Delivery damage issues] | [*ecomm (ab) - msc - wall/floor - during deliv... |
| 9 | 8 | 2260 | 8_Vehicle collision incidents | [Vehicle collision incidents] | [driver hit parked tpv causes damage. ... |
| 10 | 9 | 1597 | 9_Product leakage issues | [Product leakage issues] | [customer states it was a new candle. she left... |
| 11 | 10 | 1281 | 10_Security incident reports | [Security incident reports] | [on saturday, november 5, 2022 at approximatel... |
| 12 | 11 | 936 | 11_Road incident liability | [Road incident liability] | [rock from road - no one at fault, rock from r... |
| 13 | 12 | 846 | 12_Catalytic Converter Theft | [Catalytic Converter Theft] | [catalytic converter was stolen, catalytic con... |
| 14 | 13 | 396 | 13_Medication errors | [Medication errors] | [misfilled - incorrect medication, misfilled -... |
| 15 | 14 | 319 | 14_Vehicle accident reports | [Vehicle accident reports] | [une auto est sortie de son stationnement pour... |
| 16 | 15 | 233 | 15_Lug nut issues | [Lug nut issues] | [stripped lug nut broke stud, lug stud snapped... |
| 17 | 16 | 218 | 16_Setup request issues | [Setup request issues] | [not provided, not provided, not provided] |
| 18 | 17 | 177 | 17_Cargo damage issues | [Cargo damage issues] | [v1 cargo got damaged due to roof leakage, v1 ... |
| 19 | 18 | 153 | 18_COVID-19 positive cases | [COVID-19 positive cases] | [member tested positive for covid 19, tested p... |
| 20 | 19 | 131 | 19_Slip and Fall Incidents | [Slip and Fall Incidents] | [slip and fall, slip and fall, slip and fall] |
| 21 | 20 | 131 | 20_Vehicle accident claims | [Vehicle accident claims] | [insured vehicle hit parked third party vehicl... |
| 22 | 21 | 127 | 21_File requests and needs | [File requests and needs] | [need gd file, need an-01 file, need gd file] |
| 23 | 22 | 120 | 22_CPAP Recall Issues | [CPAP Recall Issues] | [cpap recall, cpap recall, cpap recall] |
| 24 | 23 | 110 | 23_Gastric illness suffering | [Gastric illness suffering] | [they suffered gastric illness, they suffered ... |
| 25 | 24 | 109 | 24_Property Damage from Excavation | [Property Damage from Excavation] | [damage to property due to excavation., damage... |
| 26 | 25 | 104 | 25_Vision injuries claims | [Vision injuries claims] | [claimant alleges consumption of elmiron cause... |
Deployment¶
When we talk about deploying a model, we mean making the model available for productive use. This is like putting a finished product on a store shelf so that customers can buy it.

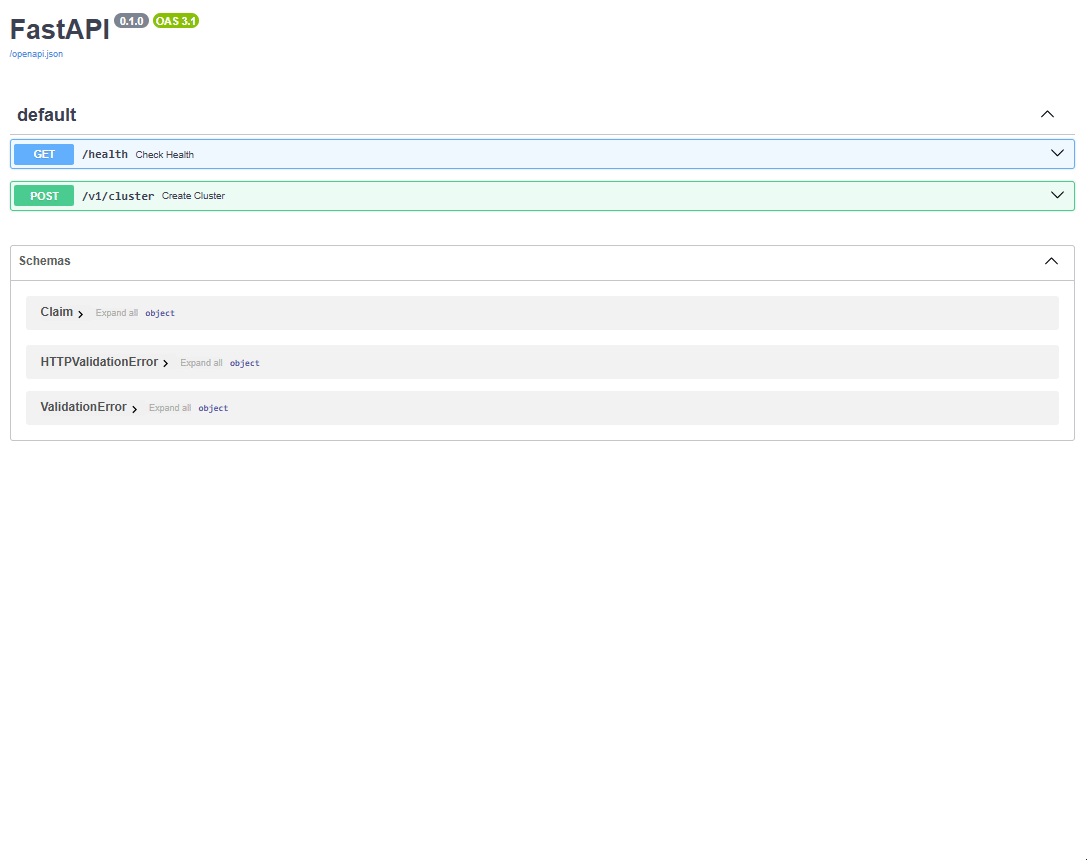

FastAPI for deployment¶
FastAPI streamlines the deployment process by enabling developers to create APIs (Application Programming Interfaces), which facilitate communication between different software programs. An API includes an inference point where a trained model is hosted, allowing users to send input data and receive real-time predictions, thus integrating the model's capabilities into various applications without requiring users to understand the underlying technology.
!fastapi dev nlp_fastapi.py
Access the API documentation at http://127.0.0.1:8000/docs.

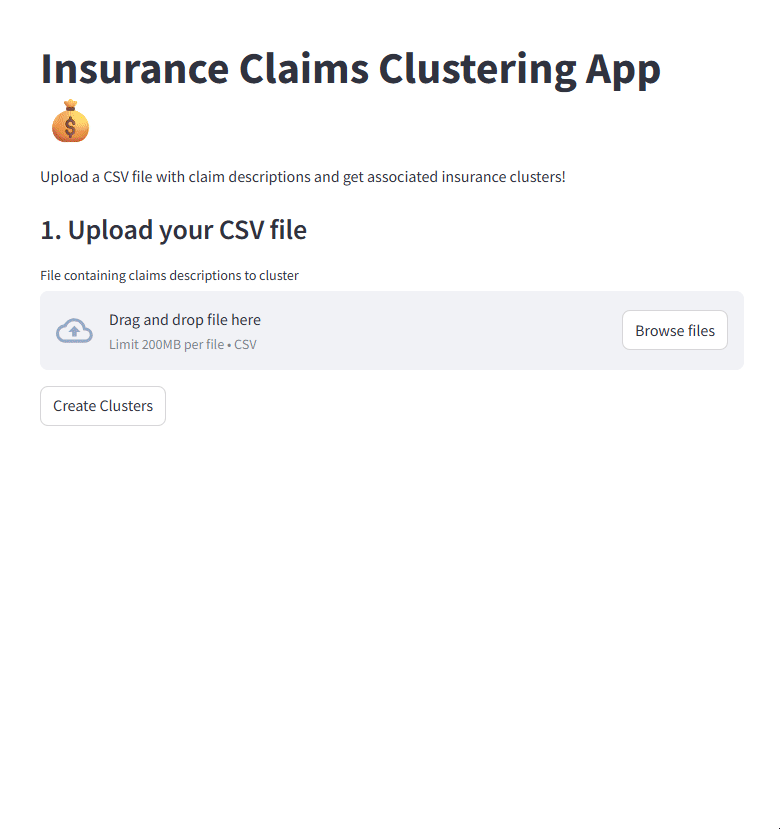

Streamlit for deployment¶
Streamlit is an open-source app framework that simplifies the deployment of NLP models by allowing developers to create interactive web applications with minimal effort. It provides a user-friendly interface for users to input data and interact with the model in real-time, making it easier to demonstrate the model's capabilities and gather user feedback.
!streamlit run nlp_streamlit.py
Wait for the local server to open in your web browser.
